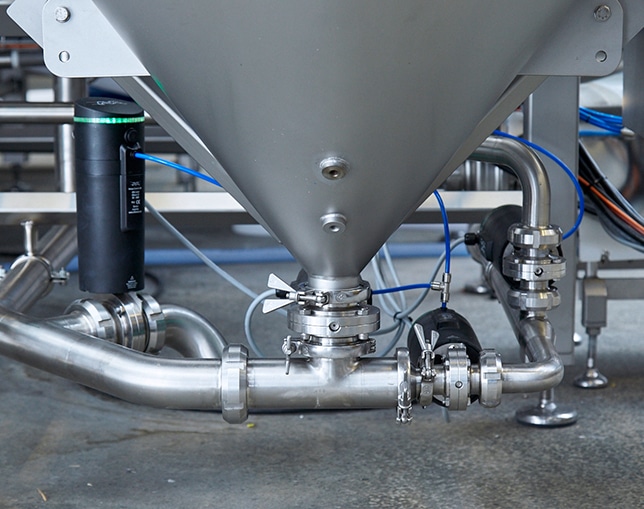

GRAVY PRODUCTION SYSTEMS

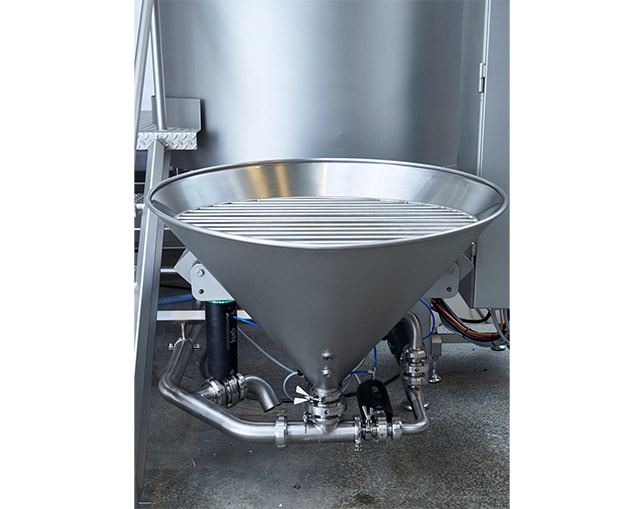

speed dry ingredients
addition Venturi system.
For addition of all kinds of
dry “challenging to add”
ingredients. Prevents air
injection into gravy during
production of same.

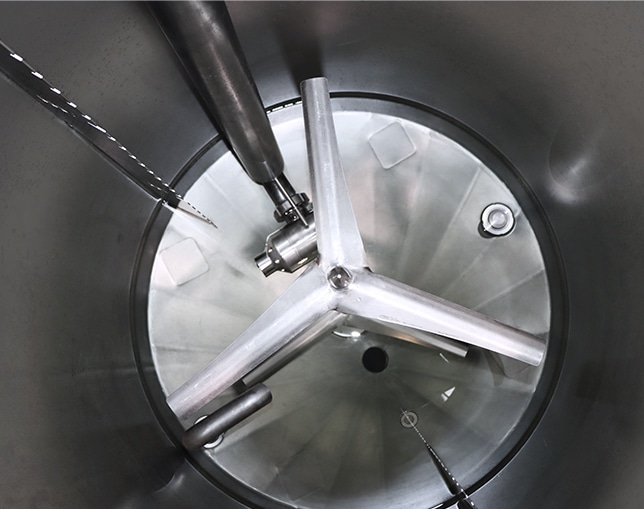

for heavy viscous gravies/
mixtures. The Venturi
system in combination
with the Heavy Duty mixing
agitators ensures a fast
processing of a gravy free
of lumps. Anti-vortex
breakers are standard in all
scanGravy mixing tanks.
Direct steam injection for
temperature control can
be added as well.
mounted on own frame for
easy access at inspection/
maintenance, etc. In
addition, the pump of
the scanGravy mixing
unit can be equipped
with its own knife system
for eliminating lumps in
“challenging to produce”
gravies.
scanGravy

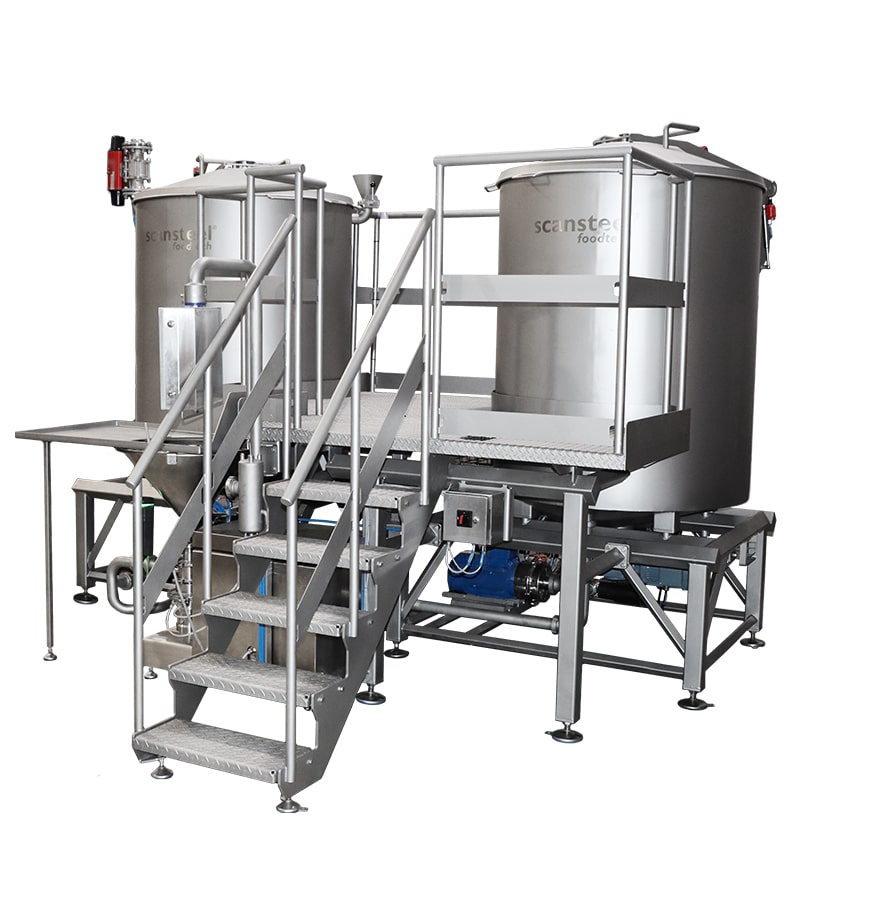

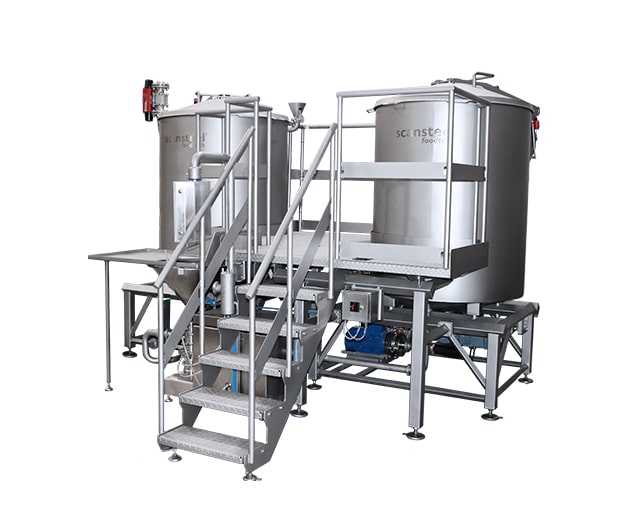

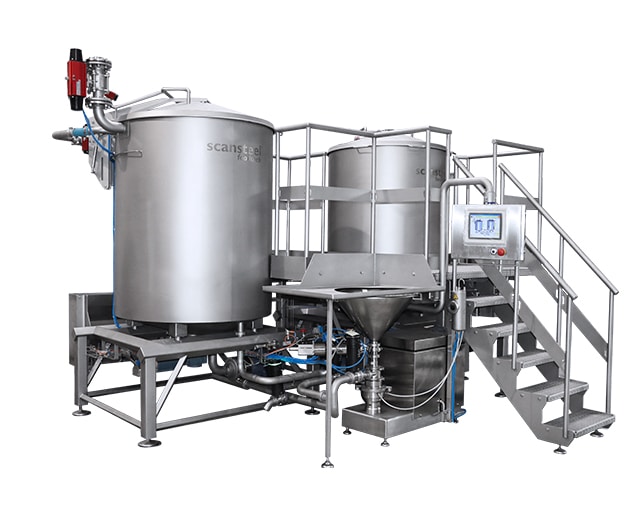

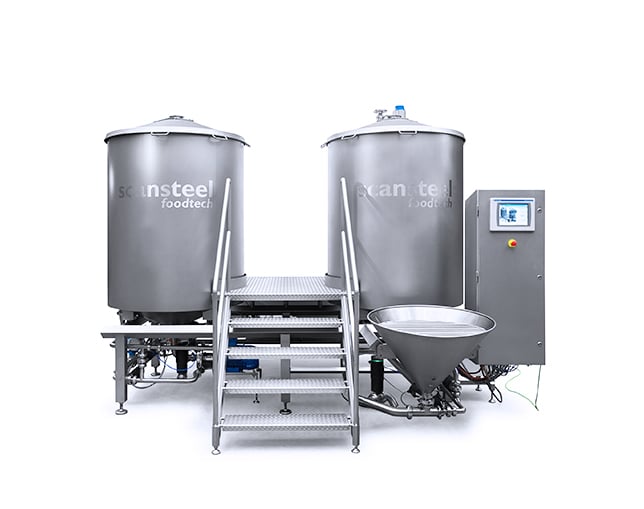

The scansteel foodtech® scanGravy mixing and storage series has been designed to manufacture a wide range of pet food gravies, from light weight gravies to heavy viscous gravies. The scansteel foodtech® scanGravy mixing and storage units are manufactured from 500 L – 6000 L. One entire system is controlled and operated by its own dedicated PLC system with optional software.

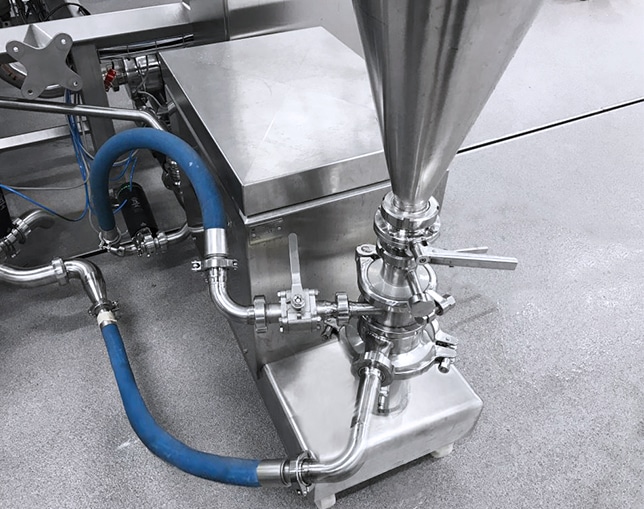

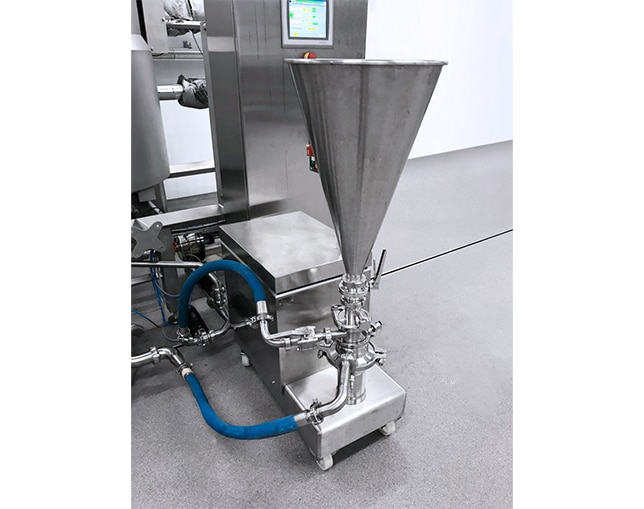

scansteel foodtech® scanGravy with Ytron Powder Dispenser - Heavy Duty Applications
The mixing tank is used to dissolve or disperse powdered products in a liquid or to mix different liquids, with the Ytron powder dispenser for dissolving all dry “challenging to add” matters/ingredients in the gravy and/or the brine. The Ytron in combination with the scanGravy secures complete dissolving of all dry matters, each particle is enclosed by water, ensuring that no “clumps” will occur. At the same time, use of ingredients can be minimized. The liquid is circulated by a centrifugal pump, after which the hopper is loaded with ingredients such as salt, phosphate, soy protein, starch, and/or spices. When the gravy solution is fully dispersed, it can be pumped directly to a scanGravy storage tank. Dry matter inlet hopper: Approx. 15 L.
